A custom bathroom vanity

Why 3D drawing is useful for designing custom bathroom furniture with tight spaces, water constraints and precise dimensions.

3D drawing brings clarity

Bathroom furniture has to be precise because space, water, access and daily use create many constraints. A 3D model helps validate the project before production.

A bathroom cabinet can look standard at first sight, but for a woodworker it is often a fully custom piece. The dimensions, wall finishes, basin position, drawers, plumbing access and material choices all have to be checked together before manufacturing.

What makes bathroom furniture specific?

A bathroom vanity often combines drawers, plumbing access, wall constraints, moisture-resistant materials and careful alignment with sanitary equipment.

A customer's sketch or an architect's DWG file is only the starting point. The professional still has to decide exact depth, side overhangs, basin clearances, cut-outs for water inlets and siphons, and the way fronts align with the room.

Why drawing bathroom furniture is particular

Small mistakes can become visible quickly: a drawer that conflicts with plumbing, a side panel too close to a wall, or a countertop that does not match the basin.

→ Expensive adjustments on site.
→ Conflicts with plumbing, tiling or other trades.
→ A drawer, door or shelf that cannot be used correctly.
→ A visible alignment problem on a piece of furniture the customer uses every day.

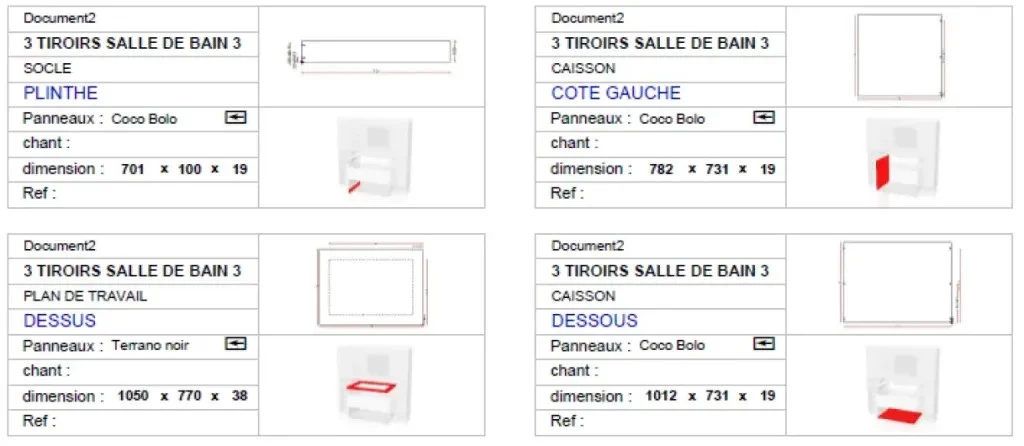

A custom bathroom vanity: manufacturing file labels 1

A restricted space with many constraints

A custom bathroom vanity: changer de coloris wood 1

→ Limited circulation space.
→ Plumbing and technical access.
→ Moisture and material choices.
→ Precise front alignment and clearances.

This is why the design phase must keep technical reservations visible. The vanity may need special cut-outs, controlled clearances around the basin, adjusted drawer depths, and panels suitable for a humid room.

Why design with Aleker for bathrooms?

Aleker helps connect the visual project with technical preparation: the professional can present the furniture, adjust it and prepare the workshop documents.

→ Immediate 3D visualization for customer validation.
→ Precise control of functional clearances and technical reservations.
→ Fast modelling from measurements, sketches or architect drawings.
→ Clean workshop output for cut lists, hardware, drawings and machining.
→ A single project file that keeps visual choices and manufacturing data connected.

In a bathroom more than elsewhere, drawing prevents avoidable mistakes. The right CAD workflow makes it possible to preserve the customer's design intent while preparing a cabinet that the workshop and installer can trust.

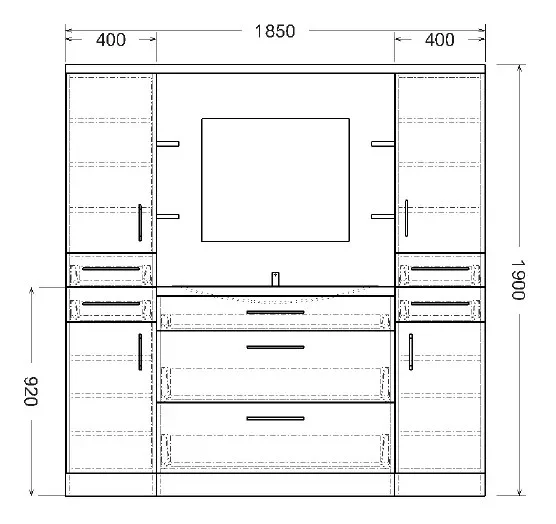

A custom bathroom vanity: views en drawing furniture sdb 1
